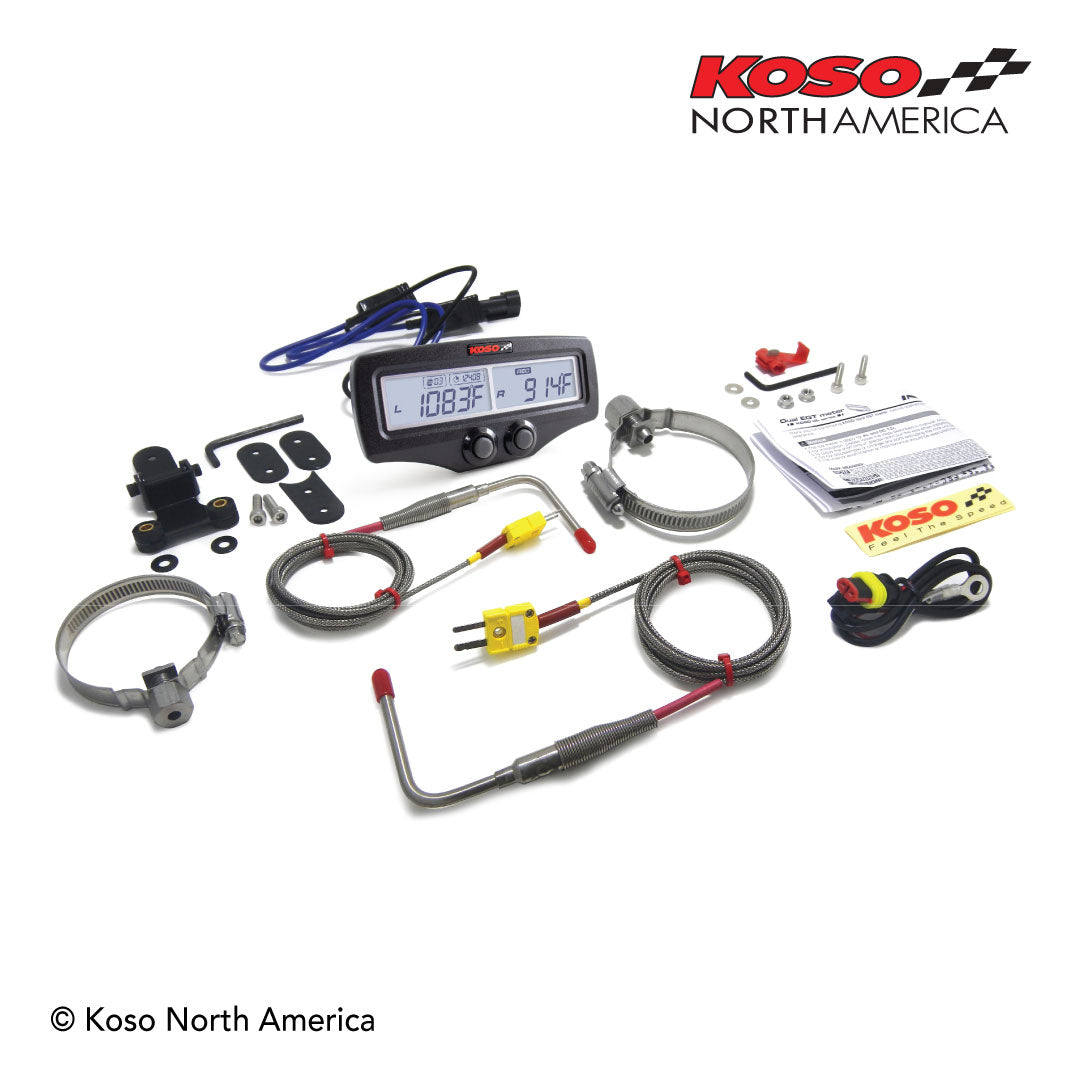

KOSO NORTH AMERICA EGT-02 Standard Dual Sensor BA006000

KOSO NORTH AMERICA EGT-02 Standard Dual Sensor BA006000

$370.45 USD
$370.45 USD $370.45 USD
セール 売り切れ
配送料はチェックアウト時に計算されます。

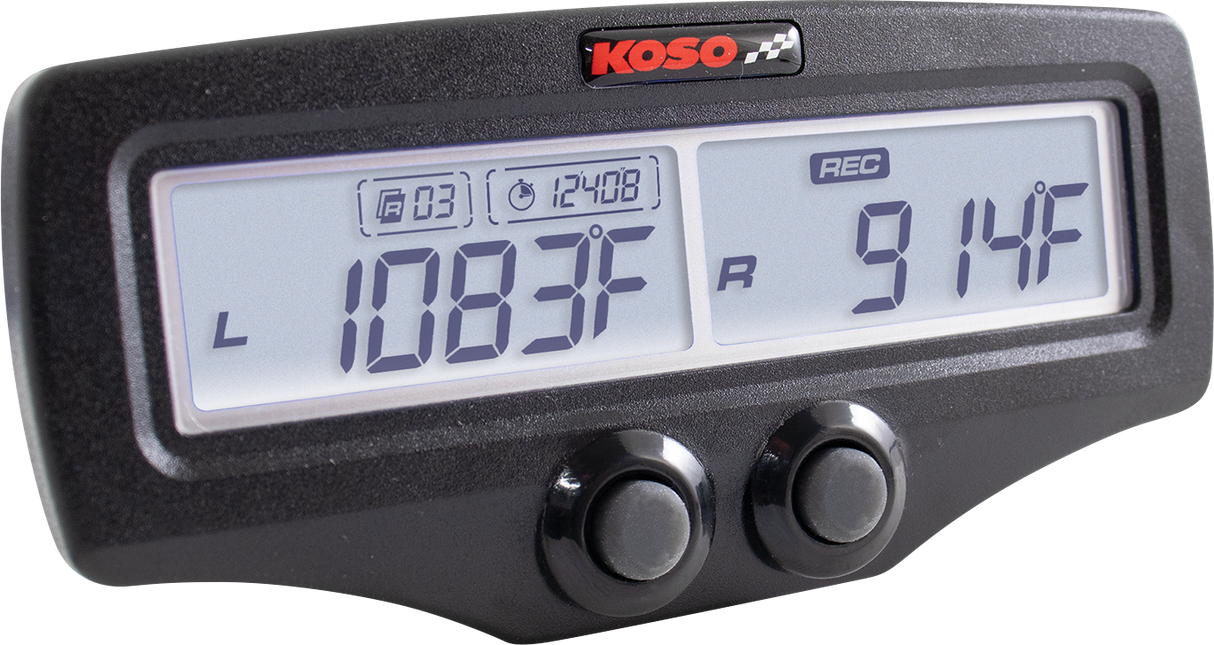

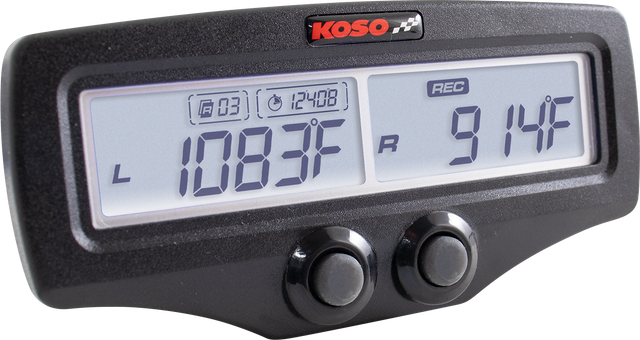

  • Dual exhaust gas temperature sensor
  • Allows rider to tune engine more precisely and keep a record of your previous runs (up to 50)
  • Settable warning for each cylinder gives the opportunity to set a maximum temperature warning of up to 2,100 °F

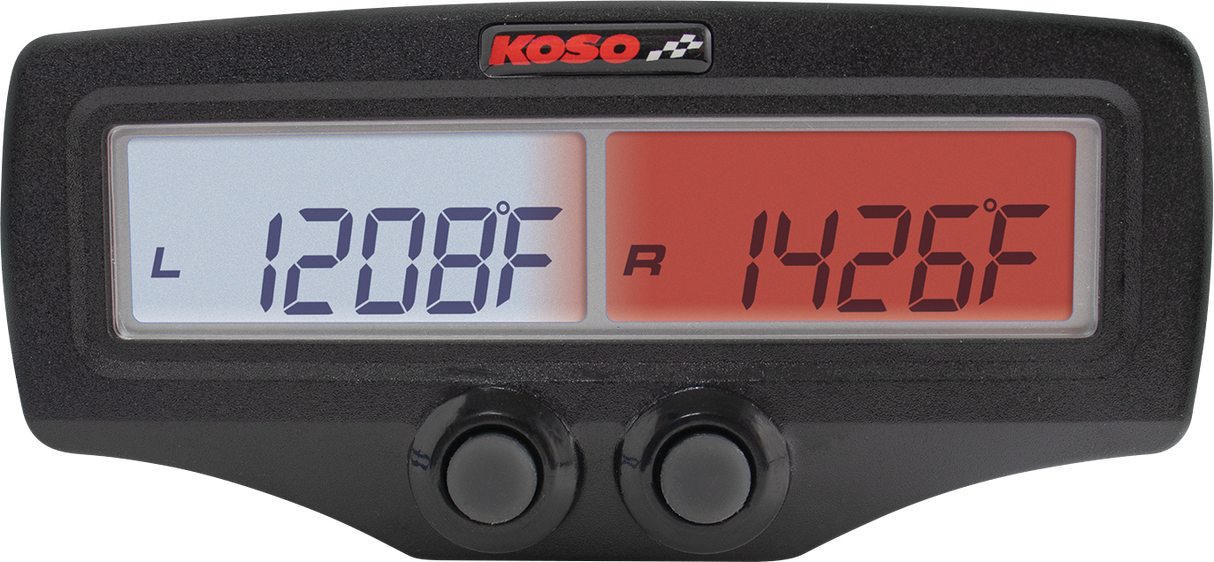

  • Red flashing of the screen makes it very easy to see if something is going wrong with the engine (This tool could save motor)
  • Effective temperature range of 14°F - 140°F (-10°C - 60°C)

Specifications (R= Range U=Unit)

  • Digital EGT temperature A/B
    R: 250 ~ 2,100 °F (100 ~ 1,200 °C)
    U: 1 °F or °C (alternative)
  • Over EGT temperature warning
    R: 392 ~ 2,100 °F (200 ~ 1,200 °C)
    U: 1 °F (°C)

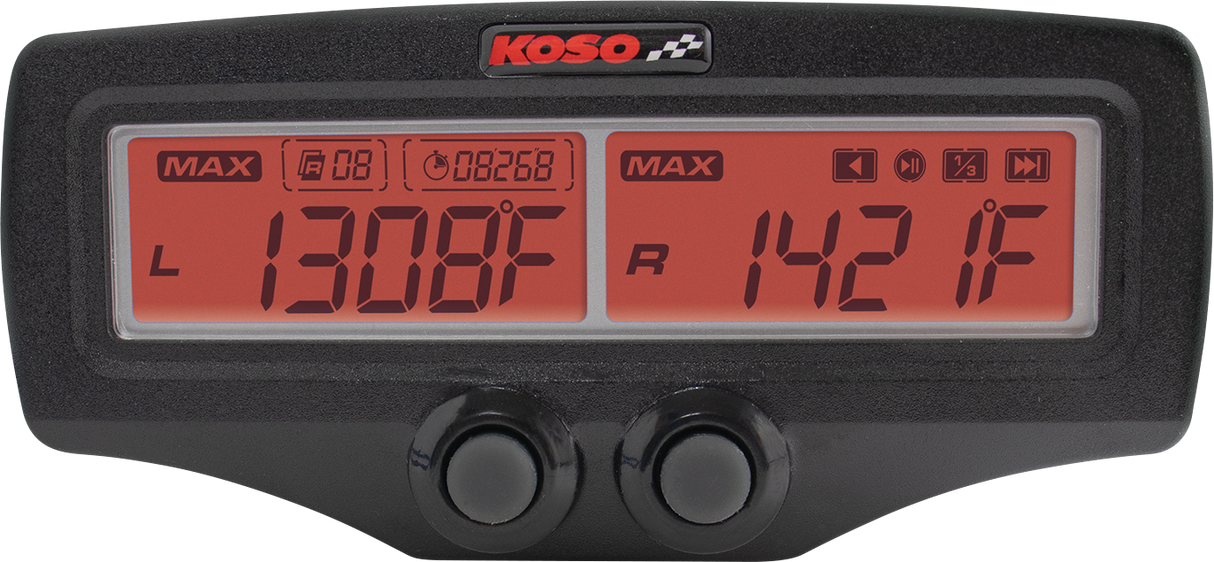

  • Max EGT temp. record
    R: 250 ~ 2,100 °F (100 ~ 1,200 °C)
    U: 1 °F (°C)

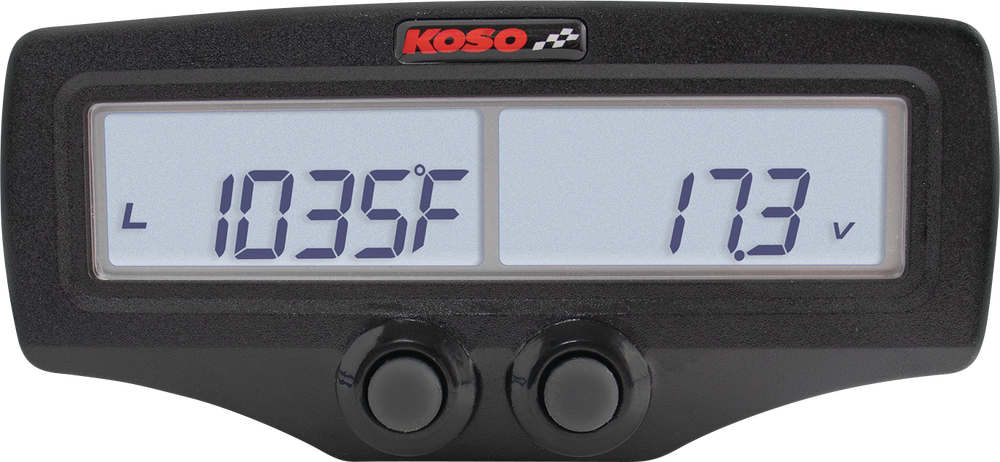

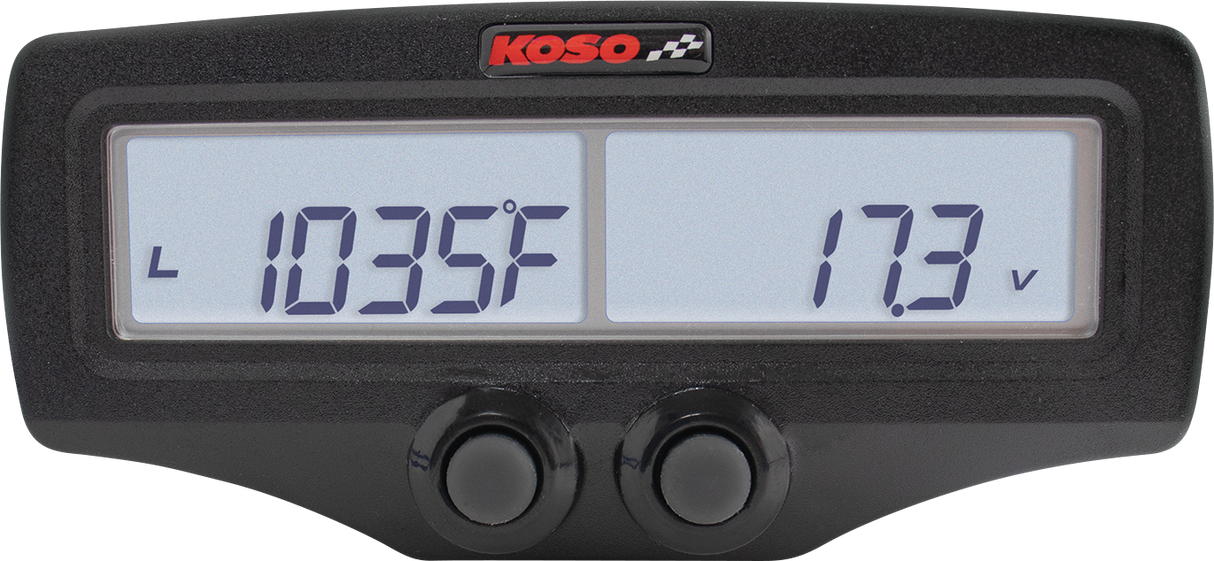

  • Volt meter
    R: DC 0.8 ~ 18 V | U: DC 0.1 V

  • Volt meter warning
    R: low voltage: DC 8.0 ~ 13.0 V
    R: high voltage: DC 13.0 ~ 16.0 V

  • Backlight brightness
    R: 1/5(Darkest) ~ 5/5(Brightest)

  • Max recorded runs: 50 runs

  • Recording time
    R: 99’59’’99 seconds | TR: approx 3.18 Hr

  • Play mode speed
    1 x play / pause | 3 x play / pause
    1/3 x play / pause | 1 x rewind / pause

  • Top temperature range
    R: 250 ~ 2,100 °F (100 ~ 1,200 °C)
    U: 1 °F (°C)
  • Effective temperature range
    14 ~ 140 °F (‑10 ~ 60 °C)
  • Effective voltage
    AC/DC 12 V
  • Sensor included
    EGT standard: 28-CKTYPE9

Instructions

Download PDF
